Code: MG3756248

Bratt pan Metos Futura HD 200

The Metos Futura HD 200L frying pan is designed for frying and cooking in large capacity kitchens and is a good choice for demanding use. Two sturdy legs make t…

List Price €19,711.00
On order
The Metos Futura HD 200L frying pan is designed for frying and cooking in large capacity kitchens and is a good choice for demanding use. Two sturdy legs make the pan stable; and motorised tilting, easy cleaning and good safety features make the pan very easy to use. The pan needs to be fixed into the floor.

The Metos Futura HD 200 L frying pan has two frying sections with an adjustable temperature of 50 °C... 250°C. The aluminium core is surrounded by heating elements enabling quick heating of the pan. The frying area is 0.78 m² and its depth is 273 mm. Four GN1/1 dishes may be placed on the bottom of the frying pan. Double walls ensure good insulation.

The frying pan is equipped with motorised tilting. The tilting function cannot be used when the lid is on, or when the pan is being filled with water The tilt angle for emptying the pan is 68° and the largest tilt angle is 90° The distance between the pan's pouring spout and the floor is 570 mm (with a tilt angle of 68°).

- temperature of the two frying sections can be adjusted individually
- balanced and insulated cover
- continuous and seamless stainless steel frying surface
- stainless steel structure
- elevated control panel in the right foot
- electromechanical control
- emergency stop switch
- overheating protection

OPTIONS
- water filling tap

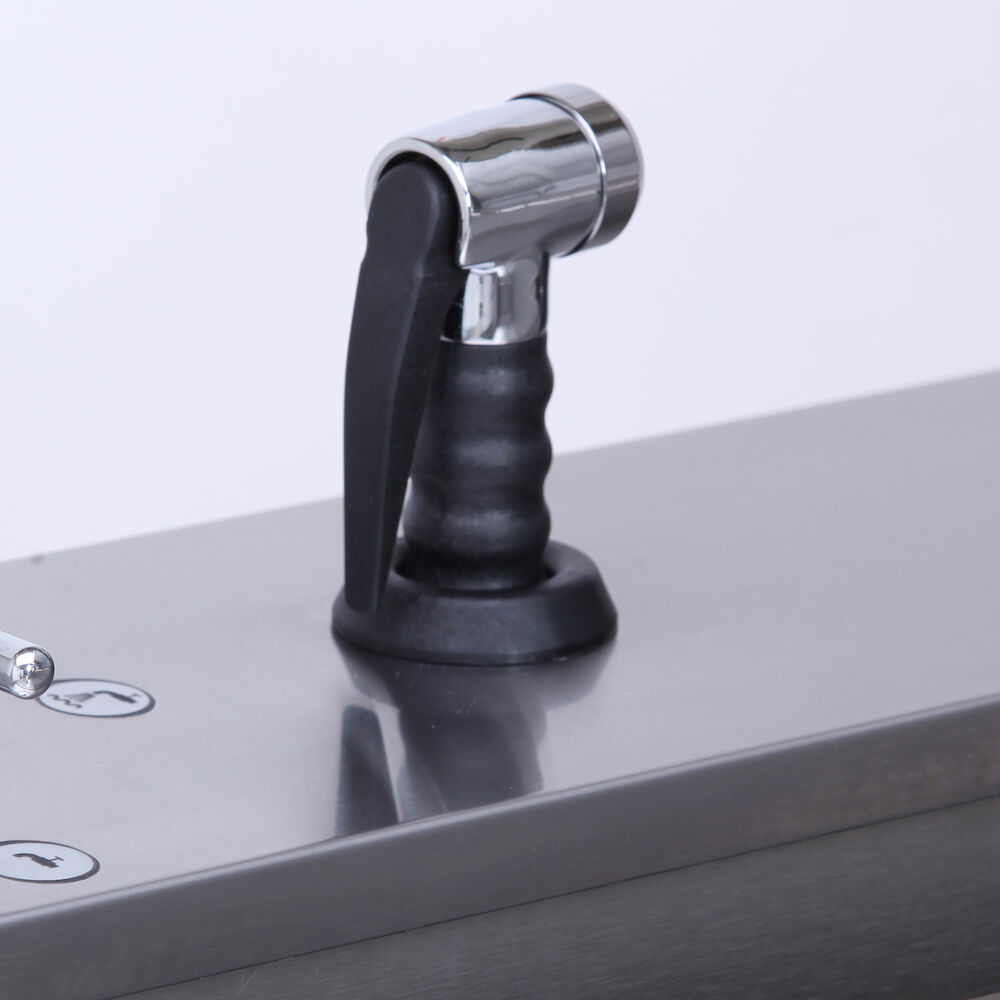

- hand shower

ACCESSORIES (ordered separately)
- strainer plate
General
Description Bratt pan Metos Futura HD 200
Dimensions and Capacity
Product capacity 200 litres
Item width mm 1858
Item depth mm 948
Item height mm 1786
Package volume 3.04 m3
Package dimensions (LxWxH) 190x100x160 cm
Net weight 370 kg
Package weight 426 kg
Technical information
Connection power kW 41.4
Fuse Size A 63
Connection voltage V 400/230
Number of phases 3NPE
Frequency Hz 50
Startup current A 60
Protection rating (IP) X4
Cold water diam. 3/4
Cold water min pressure kPa 20
Cold water max pressure kPa 800
HACCP-connectivity NO
Heat load sensitive W 18630
Heat load latent W 16500
Features
Operation type electromechanical
Cleaning hand wash
Tilting electric
Temperature probe No
Oil filtering No
Timer No
Installation
Installation floor model
Energy and Consumption
Power type electric
